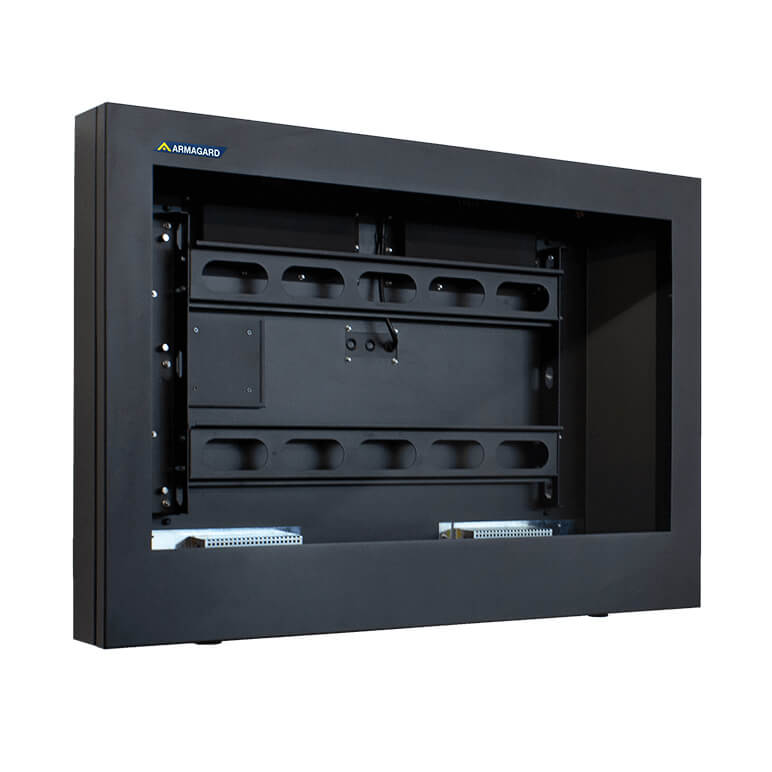

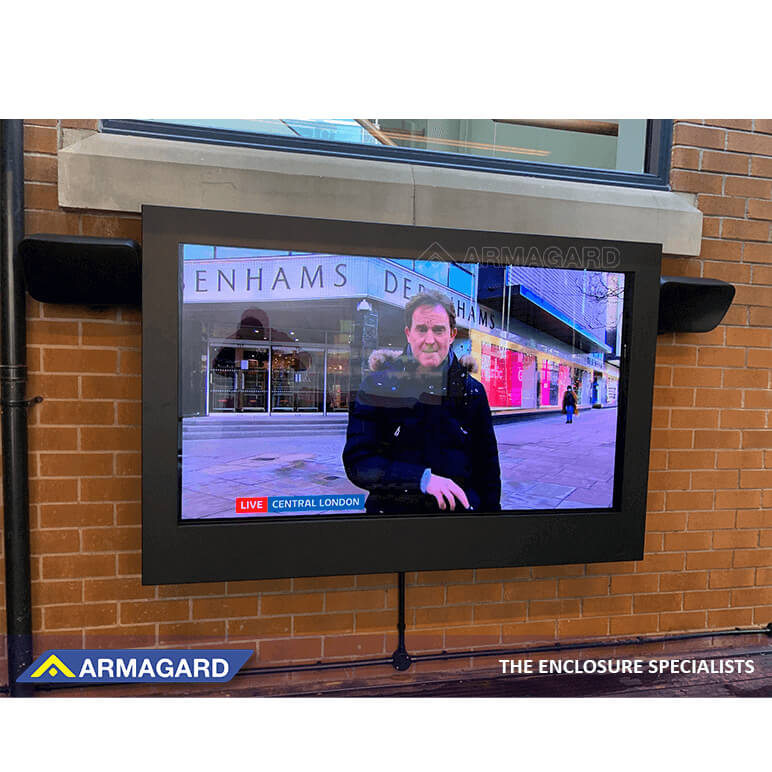

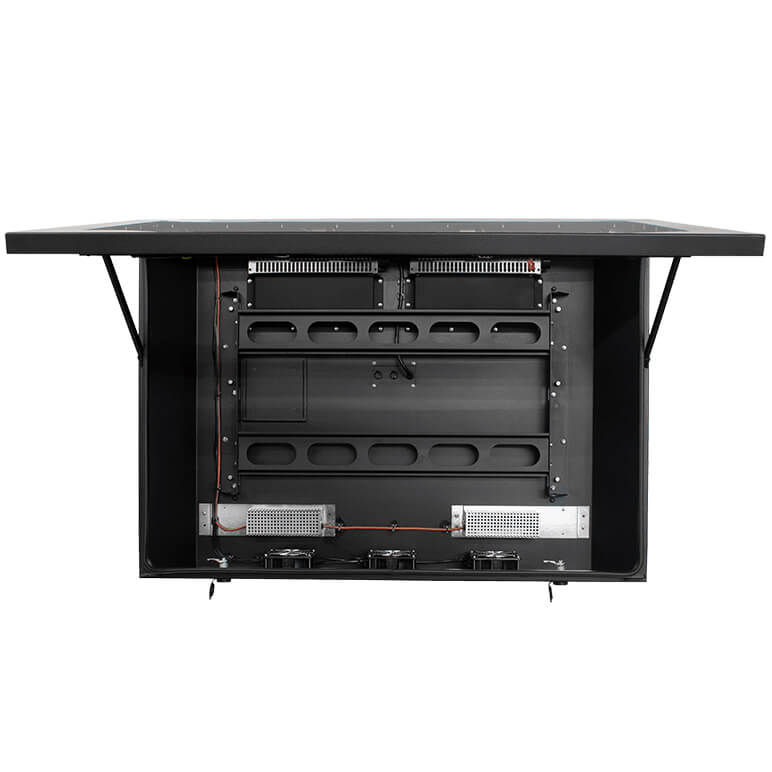

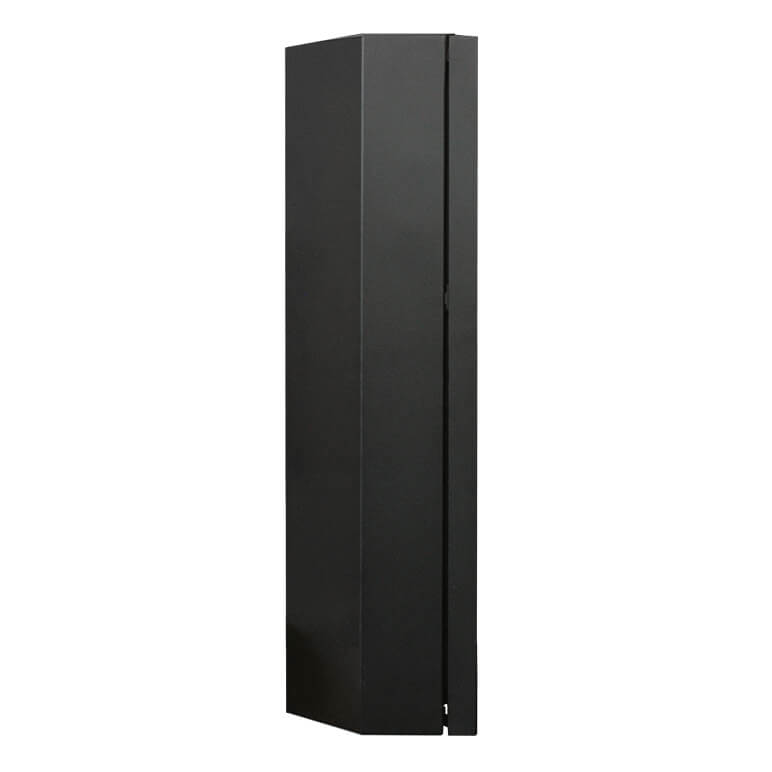

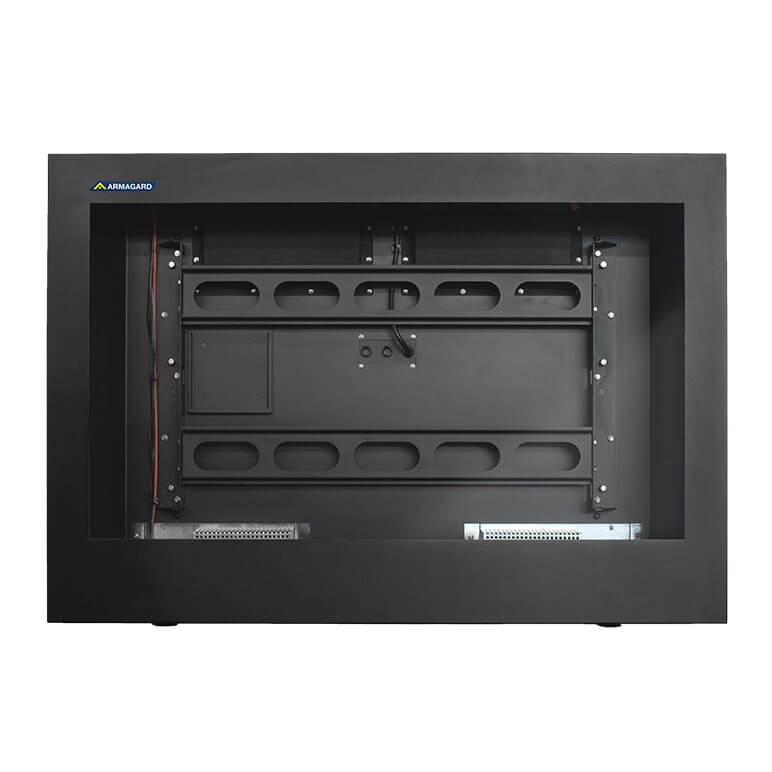

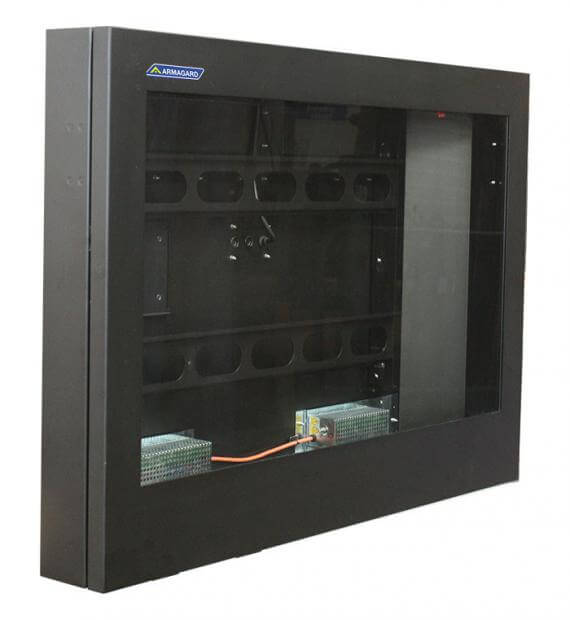

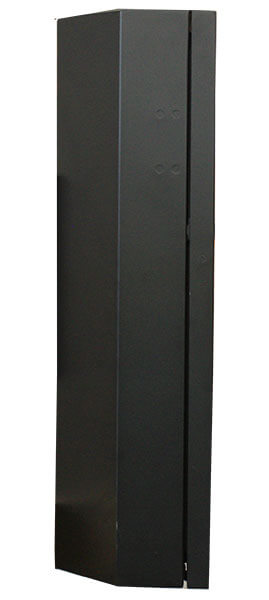

Slim profile professional outdoor LED display enclosure

Professional LED Enclosure Protects Displays From Water, Dust And Physical Impact.

With a sleek design and advanced, protective features, the slim profile professional outdoor LED display enclosure protects displays and looks great at the same time. Ideal for enhancing the look of your digital signage in customer-facing environments. Compatible with VESA mountable, high-bright displays from LG, NEC, Samsung, Dynascan and more.

With an IP54, 56 or 65 rating and a mild steel body, the enclosure protects displays from water, dust, physical damage and theft. With a five-year warranty and expected lifespan of up to ten years, the slim profile professional LED display enclosure is a cost-effective alternative to dedicated outdoor displays. Use the display of your choice and upgrade your hardware whenever you want.

Slim profile Professional Outdoor LED Display Enclosure

Click thumbnails for larger images:

Request prices

Ideal For:

  • Train Stations.
  • Bus Stops.
  • Airports.
  • Stadiums and Arenas.
  • K-12 Schools and Auditoriums.
  • University and College Campuses.

At A Glance:

Size (HxWxD) in:
See Table below
Material:
Powder Coated Mild Steel
Display Size:
24" to 75"
Mounting:
Wall or Stand
NEMA Rating:
NEMA 4, NEMA 4X
Product Code:
PDS18-W-L

Next-Generation Protection For Your Displays

As a new generation design, the slim profile outdoor display enclosure delivers improved temperature management and greater airflow efficiency. By maintaining optimum conditions, the enclosure extends the lifespan of your display, reducing the risk of downtime and maximizing advertising ROI. The enclosure has a lightweight design, is easy to install and is delivered fully assembled.

Features & Benefits:

Robust, lockable and secure, the slim profile enclosure protects your display from the hazards of outdoor and public locations.

The Slim Profile Professional Outdoor LED Display Enclosure Protects Against:

  • Light and heavy rain — For safe use of displays in outdoor locations.
  • Physical impact — Reduces downtime and repairs caused by accidental and deliberate damage.
  • Dust, dirt and windblown particulates — Ideal for industrial, arid and outdoor locations.
  • Temperature extremes — Displays operate reliably in temperatures ranging from -22°F ~ 131°F.
  • Theft — For peace of mind about the security of your investment in unattended locations.
  • Electrical surges — Eliminates system crashes and ensures components have a long life.
For full specifications & prices — Contact Us Now!

Specifications:

Armagard LED Enclosures - all in one digital signage protection.

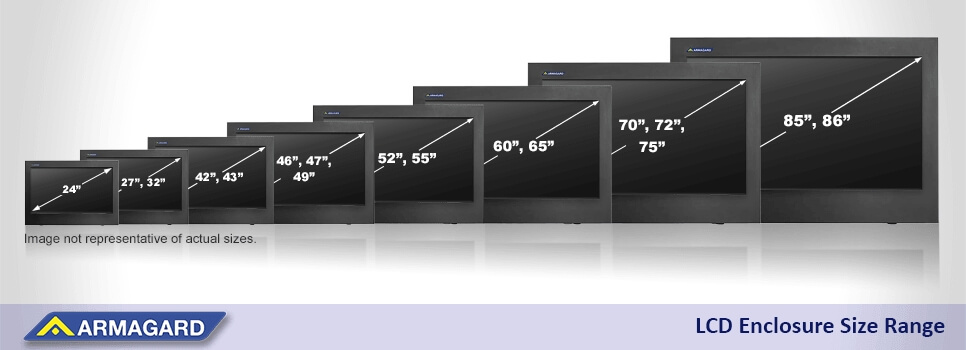

Armagard LCD Enclosures PDS-series sizes
Table describing the Size (H x W x D), for the Armagard Slimline Professional Outdoor LED Display Enclosure.
Display Size: Height inches: Width inches: Depth inches:
24″ 20 27.5 8.2
32″ 23.4 34.6 8.4
43″ 30.5 44.9 8.1
47″ 32.6 48.4 9.2
49″ 32.6 48.4 9.2
50″ 35.4 53.1 8.7
52″ 35.4 53.1 8.7
55″ 37 55.5 9.2
75″ 47.8 73.4 9.2
For full specifications & prices — Contact Us Now!

Compatible Brand Display Types:

Brand Series Models Compatible
Samsung
UJ590
Samsung UJ590 (32")
✓
Samsung
OMB
Samsung LH55OMBEBGBXEN* (55") Samsung OMB55* (55")
✓
Samsung
OMN
Samsung OMN55* (55")
✓
Samsung
QMB
Samsung QM55B* (55") Samsung QM65B* (65")
✓
Samsung
QMC
Samsung QM55C* (55") Samsung QM75C* (75")
✓
Samsung
QMR
Samsung QM65R* (65")
✓
Samsung
Q7F
Samsung QE55Q7F2AUXXN* (55")
✓
Samsung
Q67D
Samsung TQ55Q67DBUXXC* (55")
✓
Samsung
S95D
Samsung TQ65S95DATXXC* (65")
✓
Samsung
DU7100
Samsung UE60DU7100* (60")
✓
Samsung
CU7100
Samsung TU75CU7105KXXC* (75")
✓
Samsung
U8000
Samsung UE85U8000FKXXU (85")
✓
LG
XS2E
LG 49XS2E* (49") LG 75XS2E (75")
✓
LG
XS4F
LG 49XS4F-B* (49")
✓
LG
XS4G
LG 55XS4G-B* (55") LG 75XS4G-B (75")
✓
LG
UH5F
LG 65UH5F-HJ* (65")
✓
LG
UR640S
LG 65UR640S9UD (65")
✓
LG
UN640S
LG 75UN640S* (75")
✓
LG
QNED70
LG QNED70 AI QNED TV* (70")
✓
LG
UR87
LG UR87 AI UHD TV* (70")
✓
Sony
BRAVIA 8 II
Sony BRAVIA 8 II* (65")
✓
Sony
BRAVIA XR
Sony K-85XR90* (85")
✓
Sharp NEC
MultiSync EA
Sharp NEC EA272U (27")
✓
Sharp
PN-M
Sharp PN-M432 (43") Sharp PN-M752* (75")
✓
Sharp
XHB
Sharp X554HB (55")
✓
Hisense
E7Q
Hisense 65E7Q QLED AI TV(65")
✓
Vestel
PR
Vestel PR65 (65")
✓
Dahua
LDH
Dahua DHI-LDH43-SAI400K (43")
✓
Hikvision
DS-D
Hikvision DS-D6075UN* (75")
✓
DynaScan
DS
DynaScan DS751LT4 (75")
✓
Iiyama
LH
Iiyama LH7554UHS-B1AG* (75")
✓
SunBriteTV
Veranda Series 3
SunBriteTV Veranda Series 3 (55")
✓

Many legacy display models are also supported, check dimensions with your account manager.

* Note: Slim kit recommended. The Slim Kit allows the display to sit deeper within the enclosure.

Warranty & Guarantees:

Armagard enclosures are manufactured to international NEMA and European IP standards, delivering reliable protection from water and dust. Display mounting bracket included. Wall brackets available separately.

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel
