LCD Digital Gas Pump Advertising

Pump-Top Displays For Eye-Catching Promotions At Your Gas Station

Use LCD digital gas pump advertising to reach customers when they’re fueling their vehicles. Dual-sided toppers maximize pump-top space by engaging customers on both sides. The high-bright 22” or 24” screens keep your promotions clear and engaging in any weather, for year-round ROI. Also ideal for national and regional advertising and providing instructions to drivers at logistics hubs.

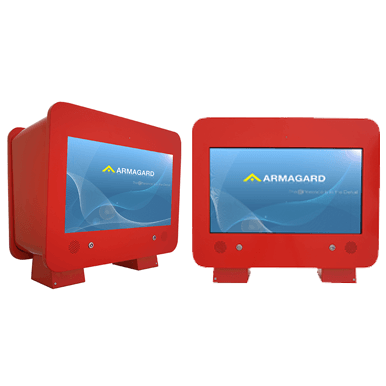

LCD digital gas pump advertising

Click thumbnails for larger images:

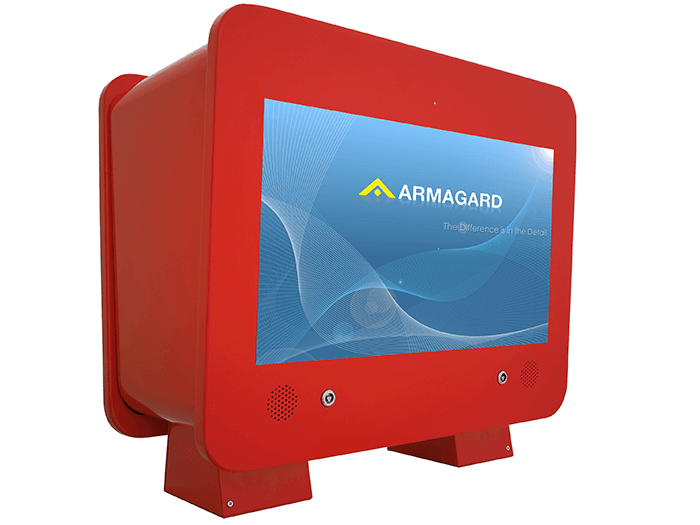

  • View the LCD digital gas pump advertising left view

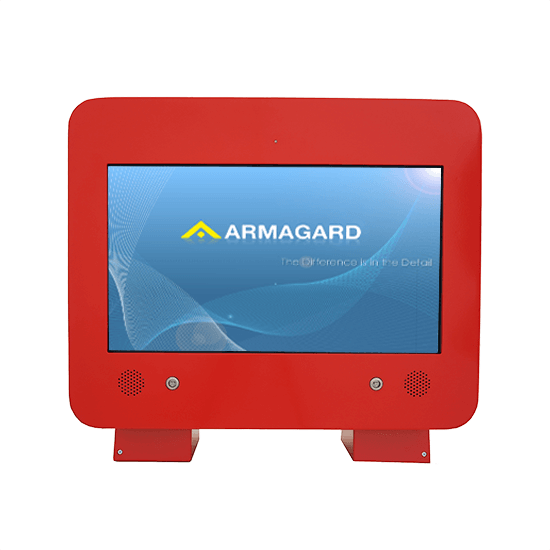

  • View the LCD digital gas pump advertising front schematic view

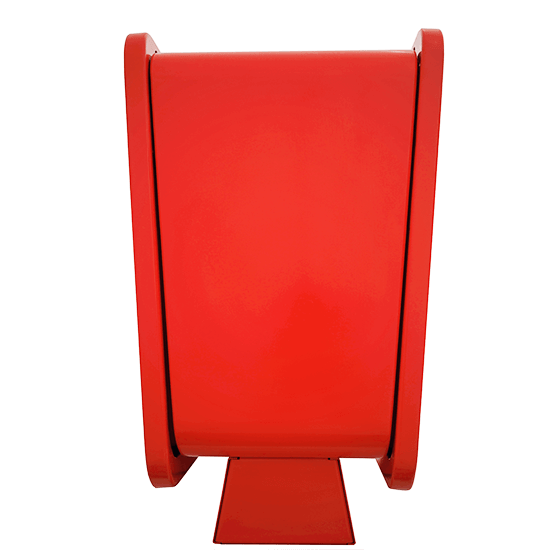

  • View the LCD digital gas pump advertising side schematic view

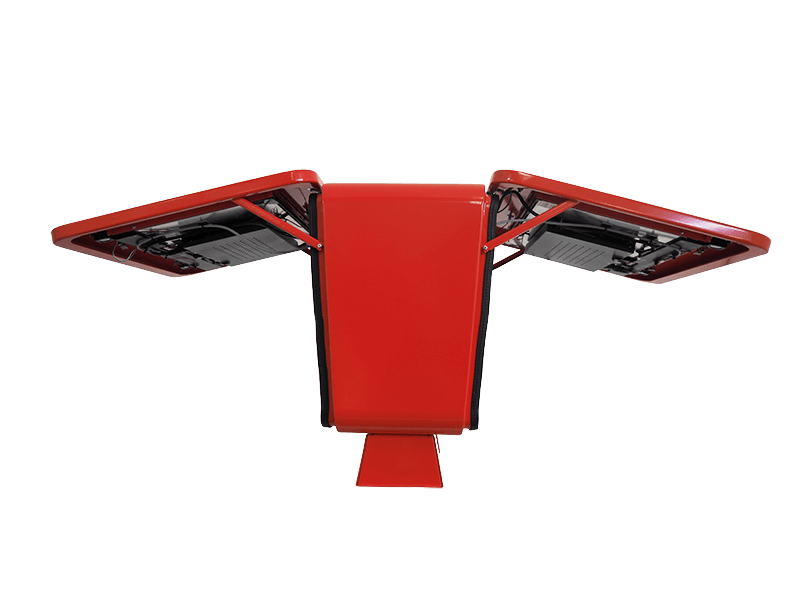

  • View the LCD digital gas pump advertising side view open


    Ideal For:

  • Gas Stations
  • Logistics Hubs
  • Parking Garages
  • Fleet Filling Stations

At a Glance:

Size in Inches
Screen Size:
Dual 22" or 24"
Screen Resolution:
1920 x 1080
Screen Brightness:
1,500 NITS
Temperature Range:
Subject to Installed Equipment *
NEMA/IP Rating:
Product Code:

LCD Digital Gas Pump Advertising In Any Weather

Over 100,000 Armagard enclosures protect screens in more than 50 countries. You can be confident that your gas station TV will work reliably in any location. The NEMA 4X enclosure prevents water and dust ingress, and 6.4 mm glass protects the screens from damage. Heating and insulation ensure reliable operation in extremely hot and cold conditions, so you engage customers in any weather.

As a cost-effective upgrade from static signage, LCD digital gas pump advertising saves you time and money. Update your content remotely, without the time and labor cost of installing paper signage. An optional motion sensor and facial recognition camera mean the pump topper shows the most-relevant content at exactly the right time, for maximum customer engagement.

* Note: Operating temperature range is based on the temperature of surrounding ambient still air when no solar load is impacting the pump topper. Operating temperature of media players, and additional electronic equipment, will impact the overall operating temperature range of the pump topper.

Features And Benefits:

Features Benefits
Dual-Sided Maximize pump-top advertising revenue with dual-sided promotions that engage customers from both sides.
1,500 NITS Screens with 6.4 mm Anti-Reflective Glass Capture customer attention with clear, readable promotions in any weather. HDMI, VGA and DVI ports allow you to connect the screens to a range of inputs.
Optional Motion Sensor and Facial Recognition Camera Boost the effectiveness of your promotions by using facial recognition technology to show the most-relevant content to each customer.
Built-In Speakers 2.0 channel stereo speakers with 3W + 3W output allow you to use audio promotions to reach customers, even when they’re not looking at the screen.
Two Mounting Options Versatile mounting options allow you to install the gas station TV using the best method for you. Install the enclosure above the pump or attach it directly to the pump top.
Aluminum Enclosure Rated to NEMA 4X/IP66 Install LCD digital gas pump advertising with confidence in outdoor locations. The enclosure provides protection from water, dust and physical damage.
Environmental Controller Board Generate maximum advertising revenue in any weather. The controller board operates internal heating and air circulation, ensuring components operate reliably in hot and freezing environments.
Easy Access via Key-Operated Locks Easily open the enclosure to repair, replace or update your hardware at any time, without calling out a specialist engineer.
Optional Network Media Player Update promotions remotely to instantly show the same or different content across all networked pump toppers. Avoid going outside in cold weather, and say goodbye to the inconvenience and cost of reprinting and installing paper signage.

For full specifications & prices - Contact Us Now!

Specifications And Guarantees:

All Armagard enclosures are built in accordance with International NEMA and European IP standards, guaranteeing protection from liquids and particulates.

    5 year warranty, TNT delivery, DSV delivery, CE, and RoHS logos

    We Guarantee:

  • Five-Year Warranty on Mechanical Parts
  • One-Year Standard Electrical Warranty, with a Five-Year Extended Warranty Available
  • Informed and Helpful Support Staff
  • High-Quality Engineering
  • Over 25 Years of International Industry Experience
  • Excellent, Ongoing Customer Service
  • Lifetime Technical Support
