Plasma Enclosure

Protect your plasma screen in public, outdoor, or harsh industrial environments.

Designed to accommodate a wide range of commercial plasma displays ranging from 24 to 86 inches. Additional VESA mounts for thin client or dedicated PCs are included, making the Armagard Plasma Enclosure an all-in-one digital signage solution.

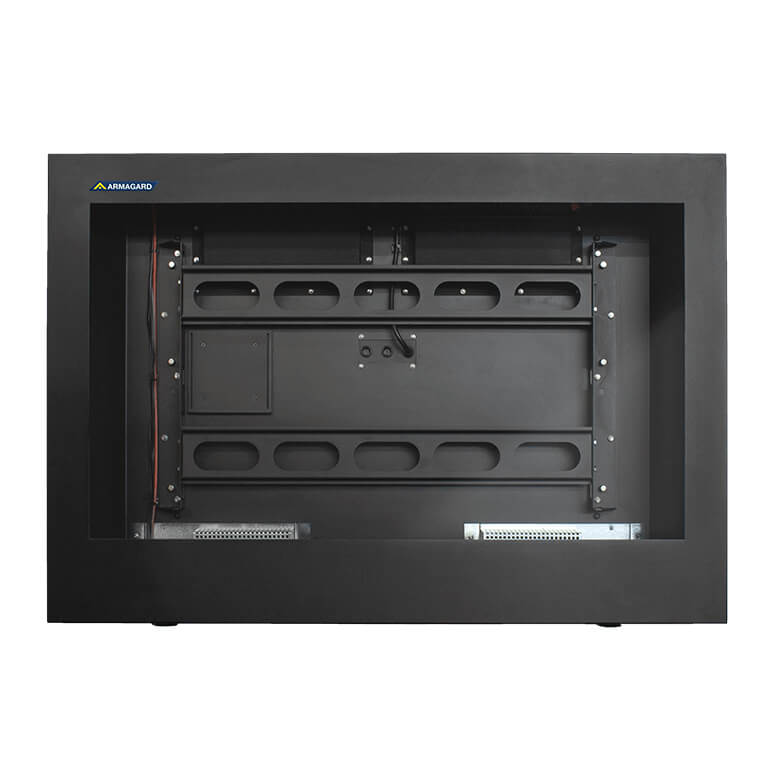

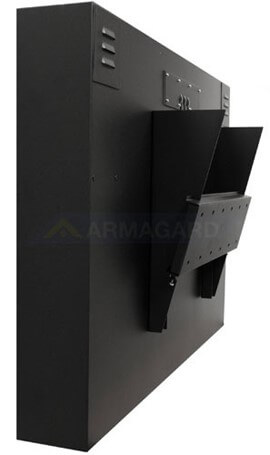

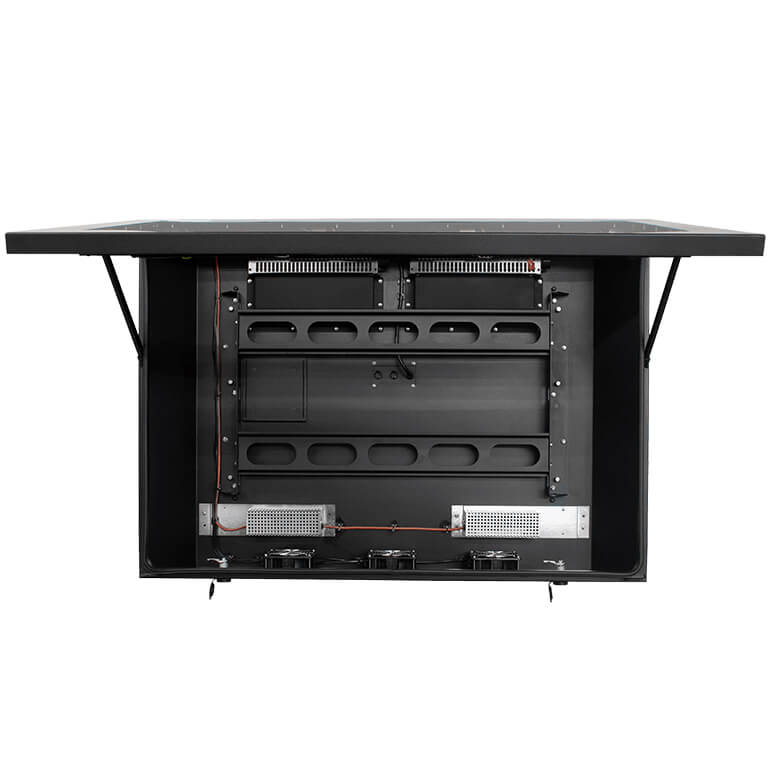

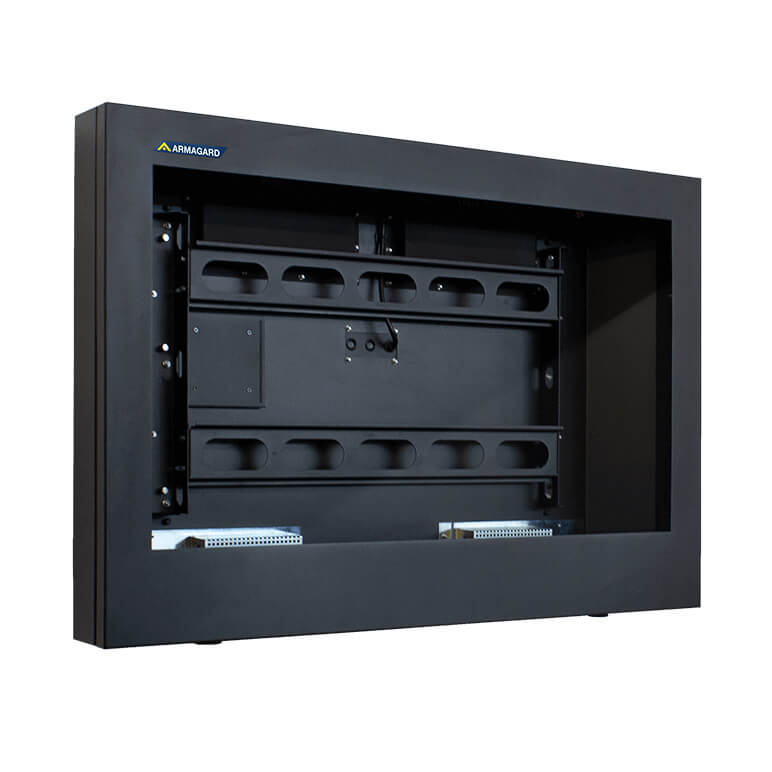

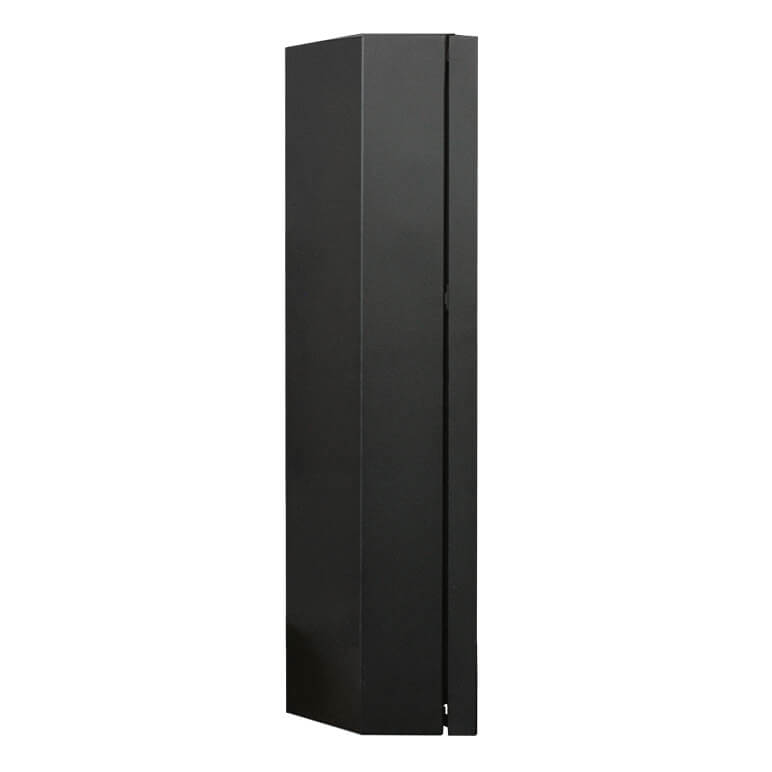

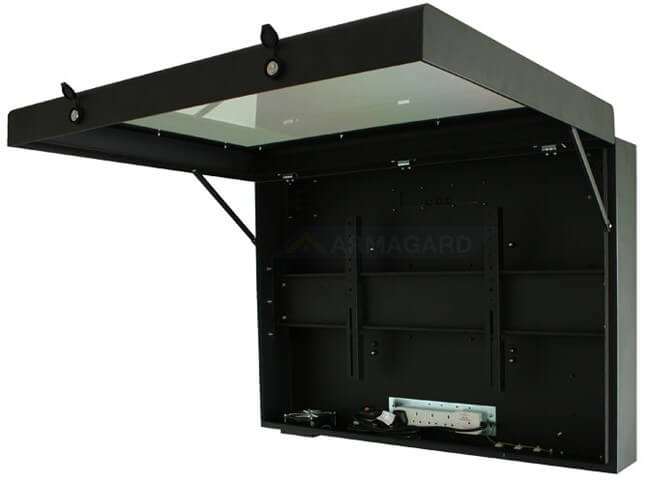

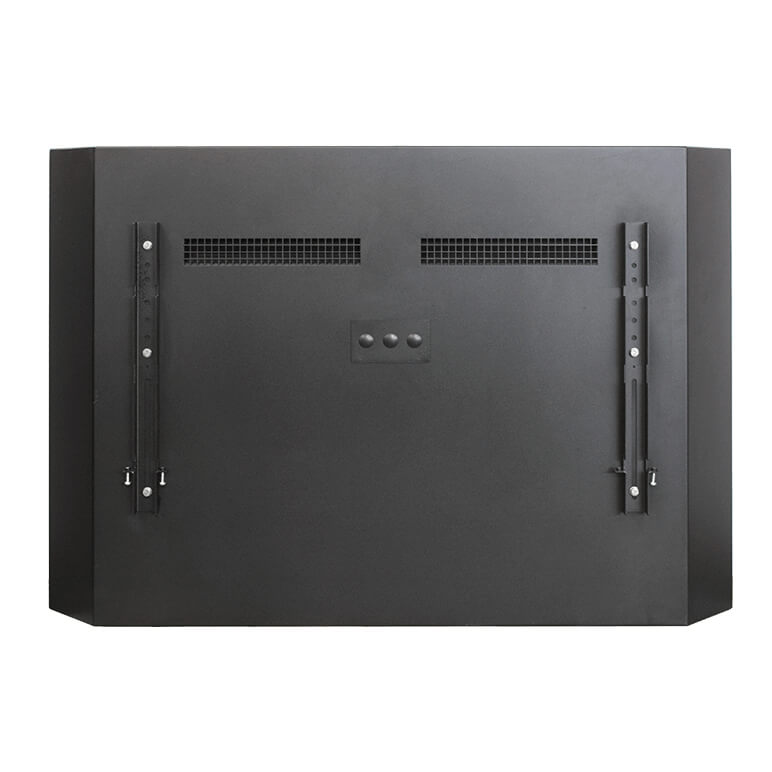

Plasma Enclosure

Click thumbnails for larger images:

Request prices

Plasma Enclosures Are Perfect For:

  • Outdoor locations
  • Public areas
  • Waiting rooms
  • Schools
  • Factory floors

Quick View:

Screen Sizes:
24", 27", 32", 42", 43", 46", 47", 49", 52", 55", 60", 65", 70", 72", 75", 85" & 86"
Material:
Powder Coated Mild Steel
NEMA Rating:
NEMA 4, NEMA 4X
Mounting:
Wall, Ceiling or Stand
Product Code:
PDS18-W-L

Features & Benefits:

Defend your digital signage from theft, vandalism, and damage caused by outdoor or industrial environments. Sealed, lockable, and secure, an Armagard Plasma Enclosure offers optimal protection for all your plasma displays.

Your Plasma Screen Is Protected Against:

  • Heavy rainfall – perfect in outdoor locations.
  • Dust and small particulates - ideal for industrial environments.
  • Electrical surges – making computer crashes a thing of the past.
  • Physical impacts - cutting down on costly repairs.
  • Temperature extremes –no extra heaters or air-conditioning needed.
  • Theft – ensuring your peace of mind.
For full specifications & prices — Contact Us Now!

Specifications:

Constructed from mild or stainless steel with shatterproof screens, Armagard Plasma Enclosures come with wall mounting brackets, but may also be ceiling or pedestal mounted.

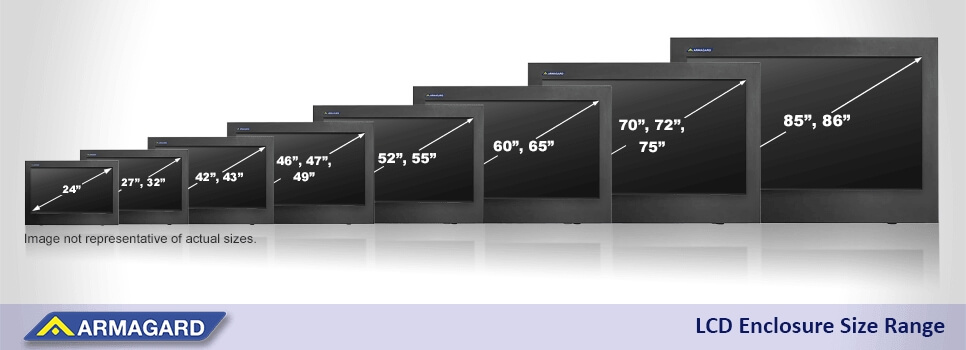

Armagard LCD Enclosures PDS-series sizes
Armagard Plasma Enclosures, for all-in-one digital signage protection.
Table describing the Size (H x W x D), mounting orientation, fabrication material and product codes for the Armagard Plasma enclosure range.
Screen Size: Dimensions H × W × D: Product Code: Screenprint:
24" 20.08 × 27.95 × 7.09 in PDS18-24-W-L
27" 23.43 × 34.69 × 8.39 in PDS18-32-W-L ✓
32" 23.43 × 34.69 × 8.39 in PDS18-32-W-L
42" 30.51 × 44.88 × 8.07 in PDS18-43-W-L
43" 30.51 × 44.88 × 8.07 in PDS18-43-W-L
46" 32.68 × 50 × 9.25 in PDS18-49-W-L ✓
47" 32.68 × 50 × 9.25 in PDS18-49-W-L ✓
49" 32.68 × 50 × 9.25 in PDS18-49-W-L
52" 37.01 × 55.51 × 9.25 in PDS18-55-W-L ✓
55" 37.01 × 55.51 × 9.25 in PDS18-55-W-L
60" 42.52 × 64.37 × 7.48 in PDS18-65-W-L ✓
65" 42.52 × 64.37 × 7.48 in PDS18-65-W-L
70" 47.83 × 73.43 × 9.25 in PDS18-75-W-L ✓
72" 47.83 × 73.43 × 9.25 in PDS18-75-W-L ✓
75" 47.83 × 73.43 × 9.25 in PDS18-75-W-L
85" 84.65 × 52.44 × 8.27 in PDS18-86-W-L
86" 84.65 × 52.44 × 8.27 in PDS18-86-W-L

Note: Enclosure sizing is based on a Standard model configuration and overall enclosure dimensions. Some sizes require a screenprint to reduce the viewing window size.

For full specifications & prices — Contact Us Now!

Compatible Brand Display Types:

Brand Series Models Compatible
Samsung
UJ590
Samsung UJ590 (32")
✓
Samsung
OMB
Samsung LH55OMBEBGBXEN* (55") Samsung OMB55* (55")
✓
Samsung
OMN
Samsung OMN55* (55")
✓
Samsung
QMB
Samsung QM55B* (55") Samsung QM65B* (65")
✓
Samsung
QMC
Samsung QM55C* (55") Samsung QM75C* (75")
✓
Samsung
QMR
Samsung QM65R* (65")
✓
Samsung
Q7F
Samsung QE55Q7F2AUXXN* (55")
✓
Samsung
Q67D
Samsung TQ55Q67DBUXXC* (55")
✓
Samsung
S95D
Samsung TQ65S95DATXXC* (65")
✓
Samsung
DU7100
Samsung UE60DU7100* (60")
✓
Samsung
CU7100
Samsung TU75CU7105KXXC* (75")
✓
Samsung
U8000
Samsung UE85U8000FKXXU (85")
✓
LG
XS2E
LG 49XS2E* (49") LG 75XS2E (75")
✓
LG
XS4F
LG 49XS4F-B* (49")
✓
LG
XS4G
LG 55XS4G-B* (55") LG 75XS4G-B (75")
✓
LG
UH5F
LG 65UH5F-HJ* (65")
✓
LG
UR640S
LG 65UR640S9UD (65")
✓
LG
UN640S
LG 75UN640S* (75")
✓
LG
QNED70
LG QNED70 AI QNED TV* (70")
✓
LG
UR87
LG UR87 AI UHD TV* (70")
✓
Sony
BRAVIA 8 II
Sony BRAVIA 8 II* (65")
✓
Sony
BRAVIA XR
Sony K-85XR90* (85")
✓
Sharp NEC
MultiSync EA
Sharp NEC EA272U (27")
✓
Sharp
PN-M
Sharp PN-M432 (43") Sharp PN-M752* (75")
✓
Sharp
XHB
Sharp X554HB (55")
✓
Hisense
E7Q
Hisense 65E7Q QLED AI TV(65")
✓
Vestel
PR
Vestel PR65 (65")
✓
Dahua
LDH
Dahua DHI-LDH43-SAI400K (43")
✓
Hikvision
DS-D
Hikvision DS-D6075UN* (75")
✓
DynaScan
DS
DynaScan DS751LT4 (75")
✓
Iiyama
LH
Iiyama LH7554UHS-B1AG* (75")
✓
SunBriteTV
Veranda Series 3
SunBriteTV Veranda Series 3 (55")
✓

Many legacy display models are also supported, check dimensions with your account manager.

* Note: Slim kit recommended. The Slim Kit allows the display to sit deeper within the enclosure.

Warranty & Guarantees:

Armagard Plasma Enclosures are manufactured according to International NEMA and European IP standards, ensuring protection from water and dust.

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel
