Food Processing Digital Screen Enclosure
Washdown Protection For 55" TVs In Sanitary Industries
Maximize the lifespan of your factory-floor screens with the food processing digital screen enclosure. The enclosure allows you to safely install a 55" screen in wet manufacturing locations. The NEMA 4 or NEMA 4X rating protects against daily washdown, and the food-grade stainless steel cabinet helps your plant meet sanitation standards.
Ideal For:
- Food and Beverage Processing
- Pharmaceutical Applications
- Chemical Manufacturing
- Petrochemical Plants
- Waste Treatment
At A Glance:
- Screen Size:
- 55" and 24", 27", 32", 42", 43", 46", 47", 49", 52", 60", 65", 70", 72", 75", 85" & 86"
- Material:
- 316 Stainless Steel
- NEMA Rating:
- NEMA 4, NEMA 4X
- Mounting:
- Wall or Stand
- Product Code:
- SDS18-55-W-L
Cost-Effective And Versatile Food Processing Digital Screen

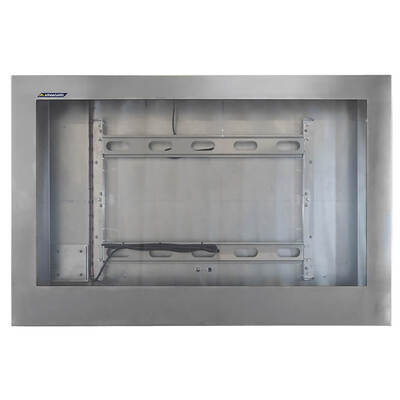

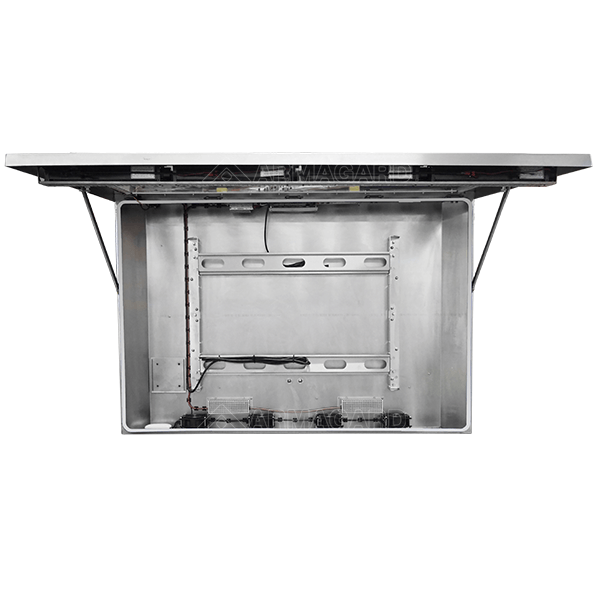

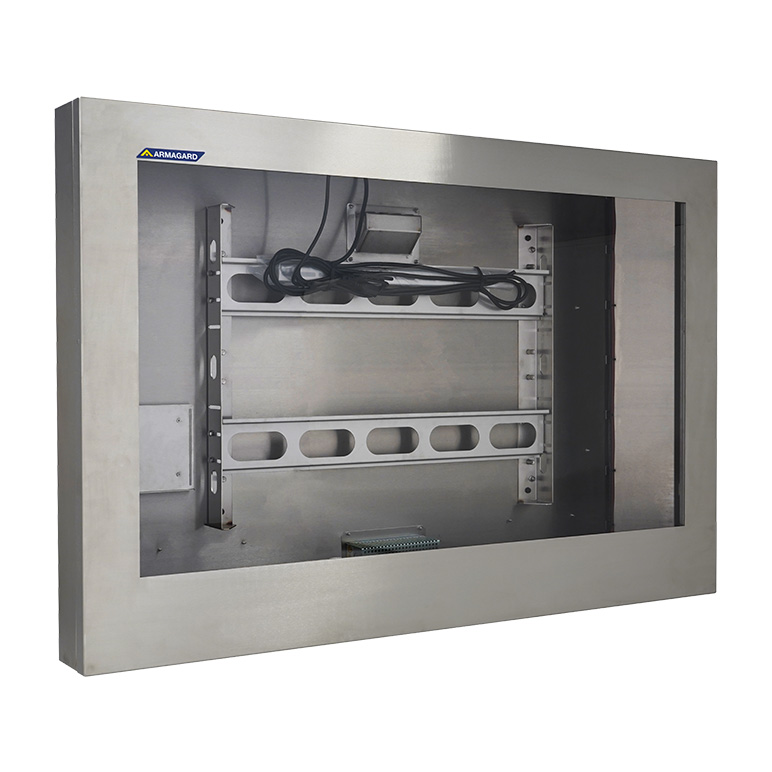

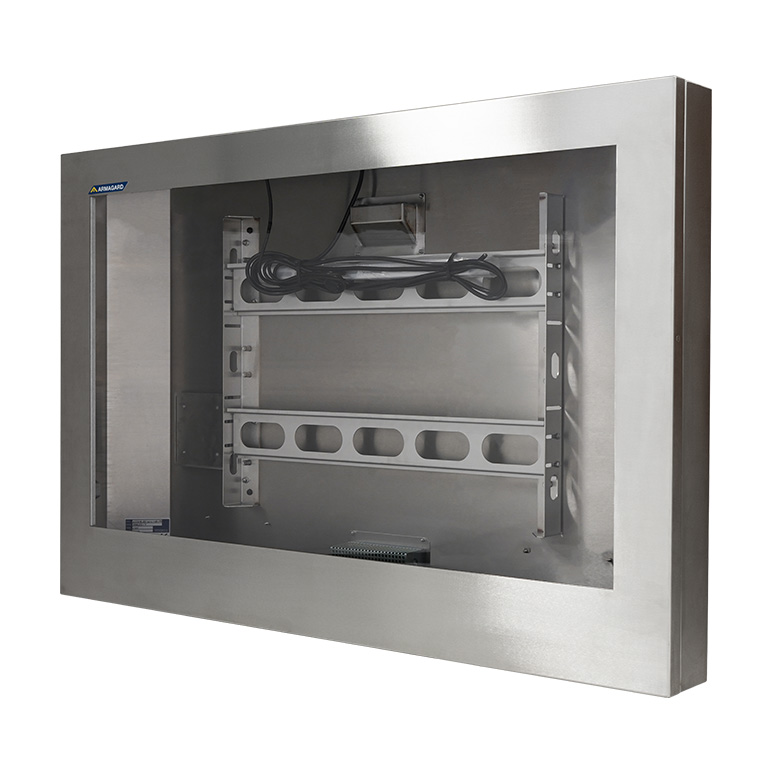

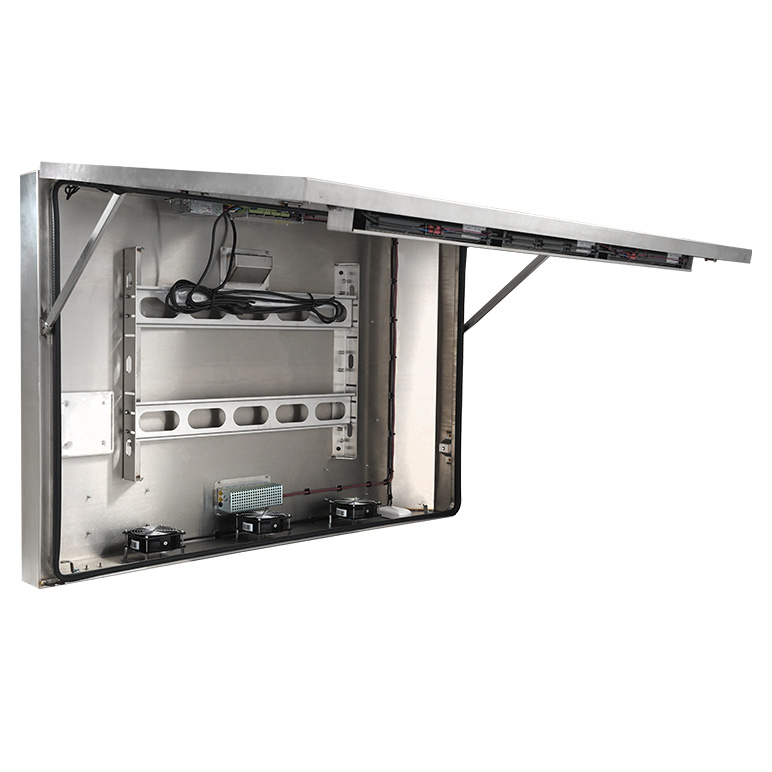

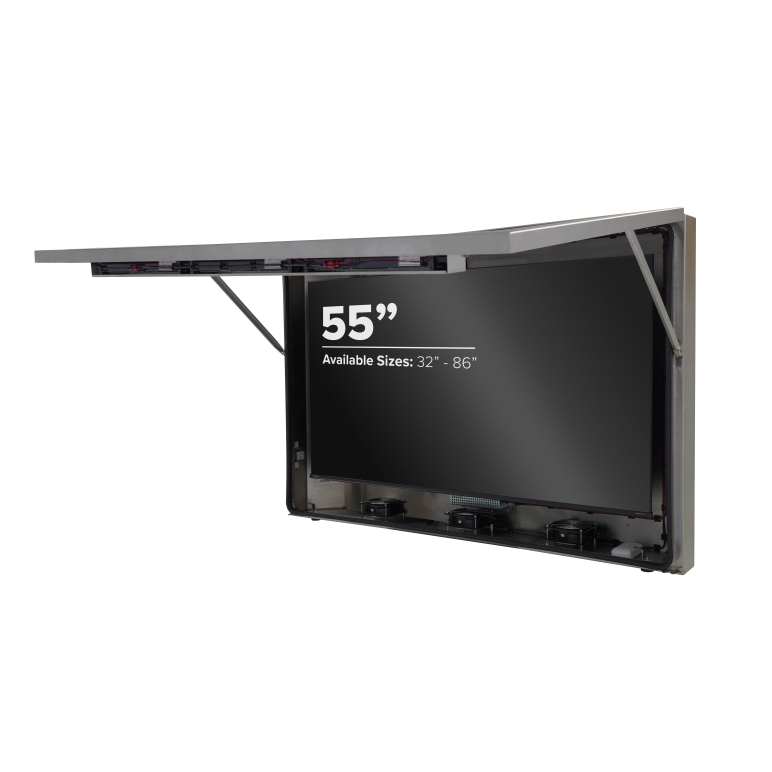

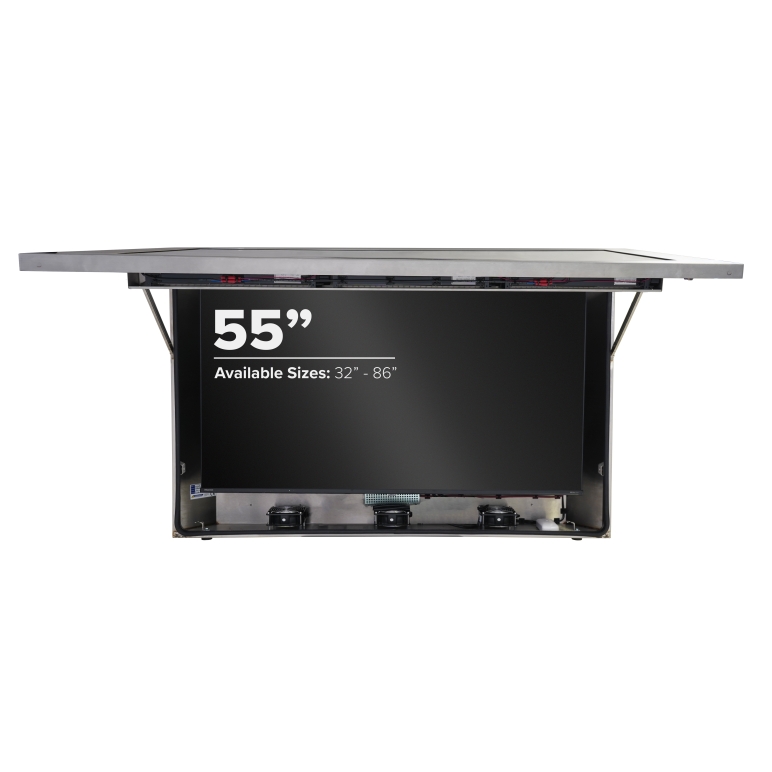

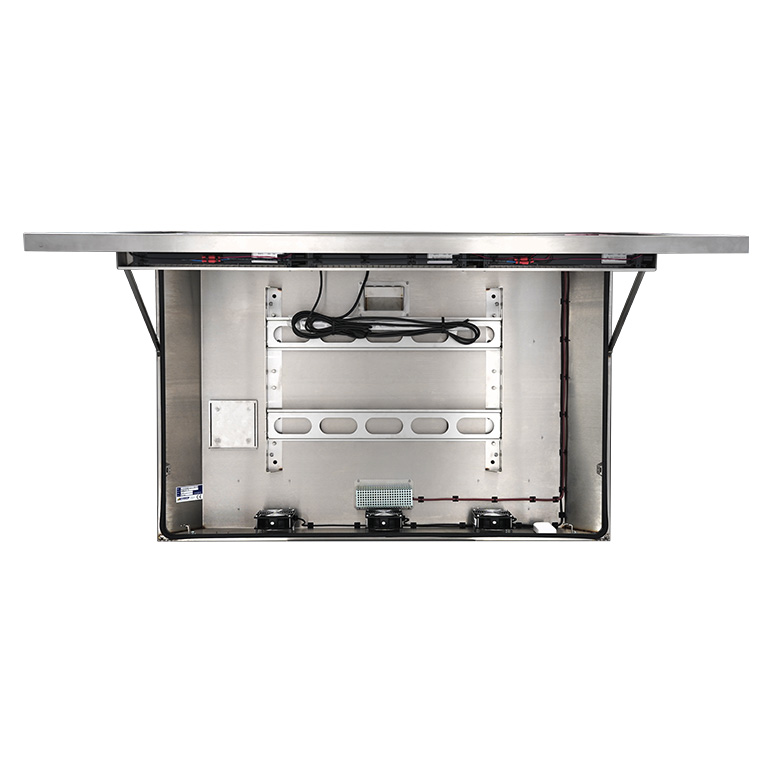

The food processing digital screen enclosure is a versatile solution for using TVs in sanitary industries. Install the VESA-ready screen of your choice and access it at any time, thanks to the enclosure’s clamshell design. An expected 10-year lifespan allows you to protect multiple screens over several years, making the 55" enclosure highly cost-effective.
Armagard enclosures are trusted by big brands across the U.S., including Cargill, Tyson Foods, and Smithfield Foods. Benefit from industry-leading warranties, lifetime customer support, and Armagard’s 30 years of experience. The food processing TV enclosure is also available in an IP69K version, for protection from high-pressure, high-temperature cleaning in sterile locations.
For full specifications & prices — Contact Us Now!Features And Benefits:
| Features | Benefits |
|---|---|
| NEMA 4, NEMA 4X Rating | Protects against water and particulate ingress. Benefit from maximum equipment longevity in harsh, washdown environments. |
| Food-Grade (316) Stainless Steel | The food-grade enclosure is corrosion resistant and antibacterial. Ideal for industries governed by strict sanitation standards. |
| Internal Climate Controls | Choose from three levels of environmental control. A controller board manages automatic heating, cooling, and shutdown functionality. The range-topping washdown enclosure protects a screen from -22°F to 95°F. |
| Shatterproof Polycarbonate Window | Ideal for food and pharmaceutical manufacturing. The shatterproof window is 20x stronger than glass and won’t contaminate your production line in the unlikely event of an impact. |
| VESA Compatibility and Easy Access | Install the slimline, VESA-ready screen of your choice. As a versatile alternative to sealed waterproof TVs, the enclosure allows you to access the display at any time, without waiting for a specialist engineer. |

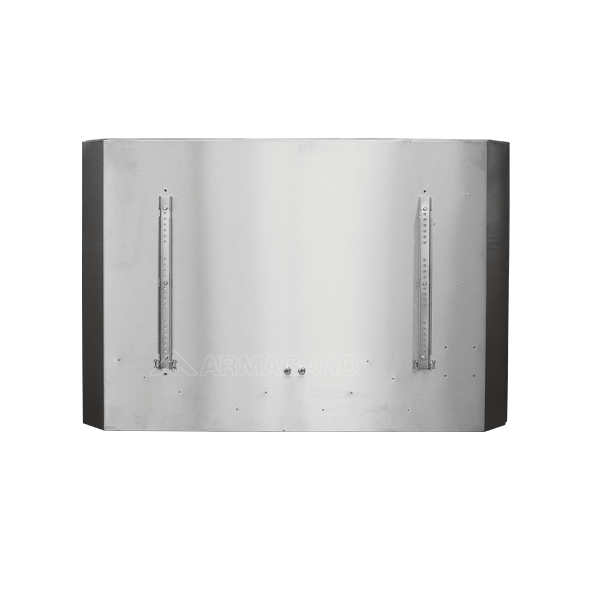

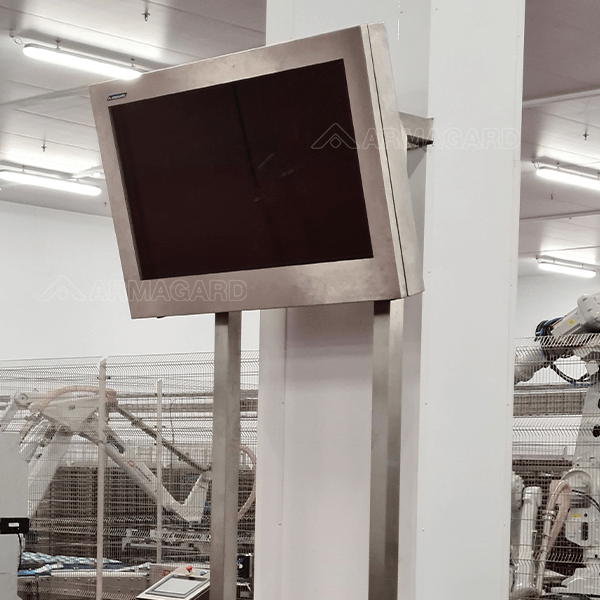

| Ceiling, Wall, or Stand Mounting | Position food processing digital signage in the ideal location on your factory floor. Choose from tilted or flat wall mounting wall brackets. Stand mounting is also available as a custom option. |

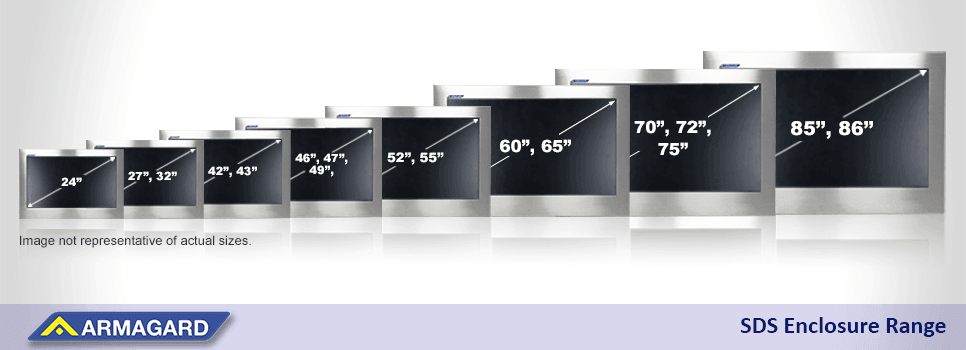

| Screen Size: | Dimensions H × W × D: | Product Code: | Screenprint: |
|---|---|---|---|
| 24" | 20.08 × 27.56 × 8.15 in | SDS18-24-W-L | |
| 27" | 23.43 × 34.69 × 8.39 in | SDS18-32-W-L | ✓ |
| 32" | 23.43 × 34.69 × 8.39 in | SDS18-32-W-L | |
| 42" | 30.51 × 44.88 × 8.07 in | SDS18-43-W-L | |
| 43" | 30.51 × 44.88 × 8.07 in | SDS18-43-W-L | |
| 46" | 32.68 × 50 × 9.25 in | SDS18-49-W-L | ✓ |
| 47" | 32.68 × 50 × 9.25 in | SDS18-49-W-L | ✓ |
| 49" | 32.68 × 50 × 9.25 in | SDS18-49-W-L | |
| 52" | 37.01 × 55.51 × 9.25 in | SDS18-55-W-L | ✓ |
| 55" | 37.01 × 55.51 × 9.25 in | SDS18-55-W-L | |
| 60" | 42.52 × 64.37 × 7.48 in | SDS18-65-W-L | ✓ |
| 65" | 42.52 × 64.37 × 7.48 in | SDS18-65-W-L | |
| 70" | 47.83 × 73.43 × 9.25 in | SDS18-75-W-L | ✓ |
| 72" | 47.83 × 73.43 × 9.25 in | SDS18-75-W-L | ✓ |
| 75" | 47.83 × 73.43 × 9.25 in | SDS18-75-W-L | |
| 85" | 84.65 × 52.36 × 7.56 in | SDS18-86-W-L | |
| 86" | 84.65 × 52.36 × 7.56 in | SDS18-86-W-L |
Note: Enclosure sizing is based on a Standard model configuration and overall enclosure dimensions. Some sizes require a screenprint to reduce the viewing window size.
Warranty & Guarantees:
All Armagard enclosures are built in accordance with International NEMA and European IP standards, guaranteeing protection from liquids and particulates.
Why Armagard?
- In-house dedicated design engineering
- Over 30 years of enclosure industry experience
- Over 100,000 enclosures protect manufacturing and digital signage equipment
Five-year warranty
- Five year warranty across all enclosure specific mechanical and electrical components
Customer service
- Lifelong technical assistance
- Responsive and timely after-sales support
- Knowledgeable and supportive personnel
