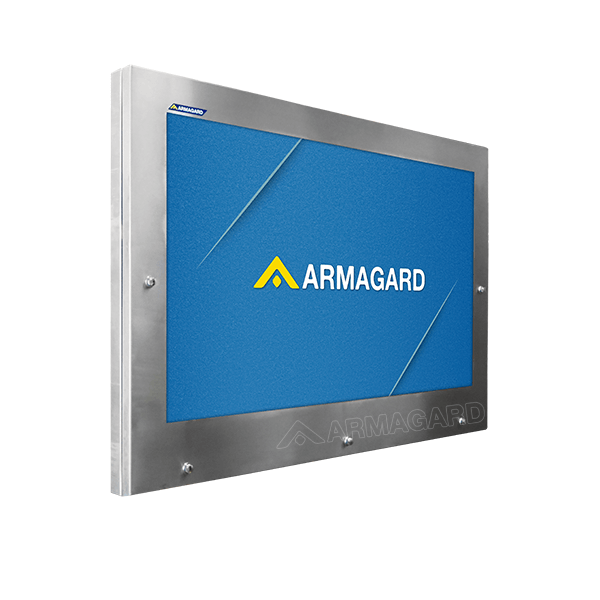

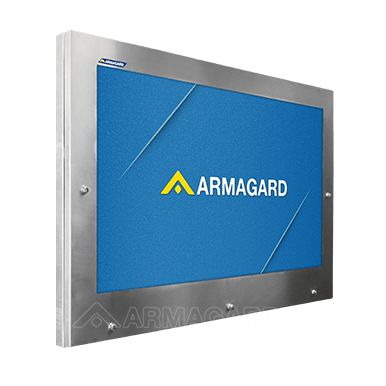

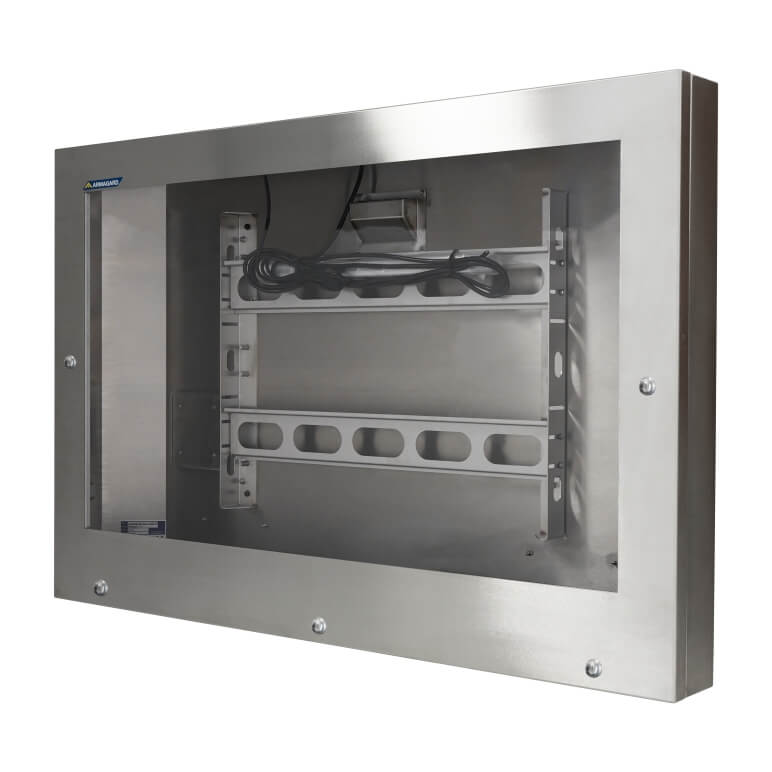

IP69K Production Display Board Enclosure
Protect Digital KPI Screens From High-Pressure Steam Cleaning

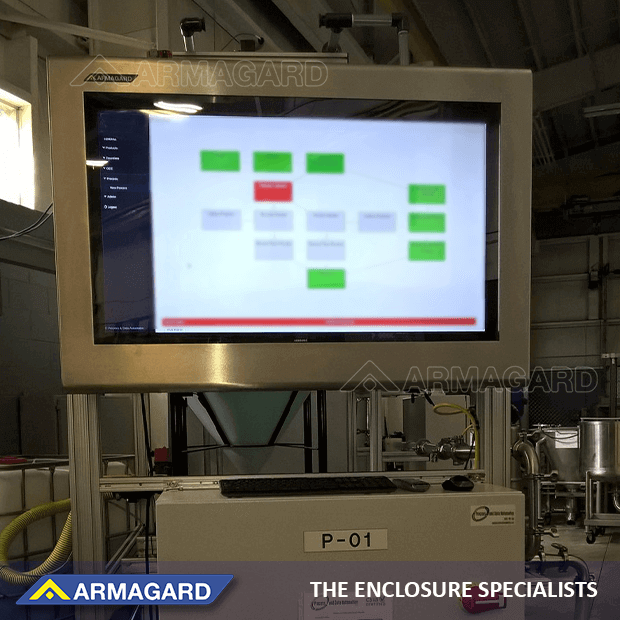

Safely install 55" KPI screens in your food or pharmaceutical plant. The IP69K production display board enclosure protects a screen from high-pressure, high-temperature jets. Safely carry out intensive, time-efficient washdown procedures that meet strict sanitation standards. The IP69K rating ensures the screen operates with maximum longevity in harsh conditions.

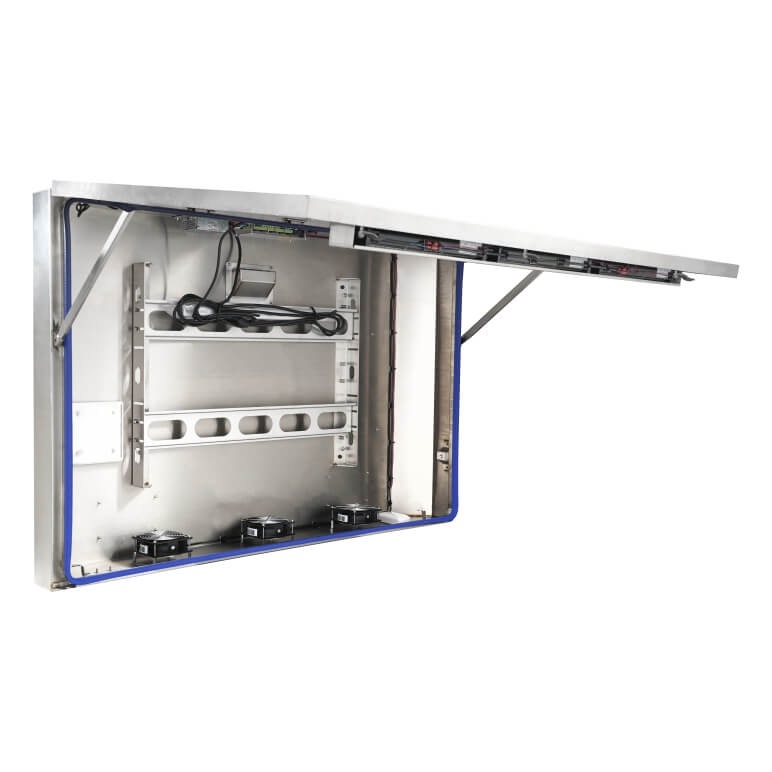

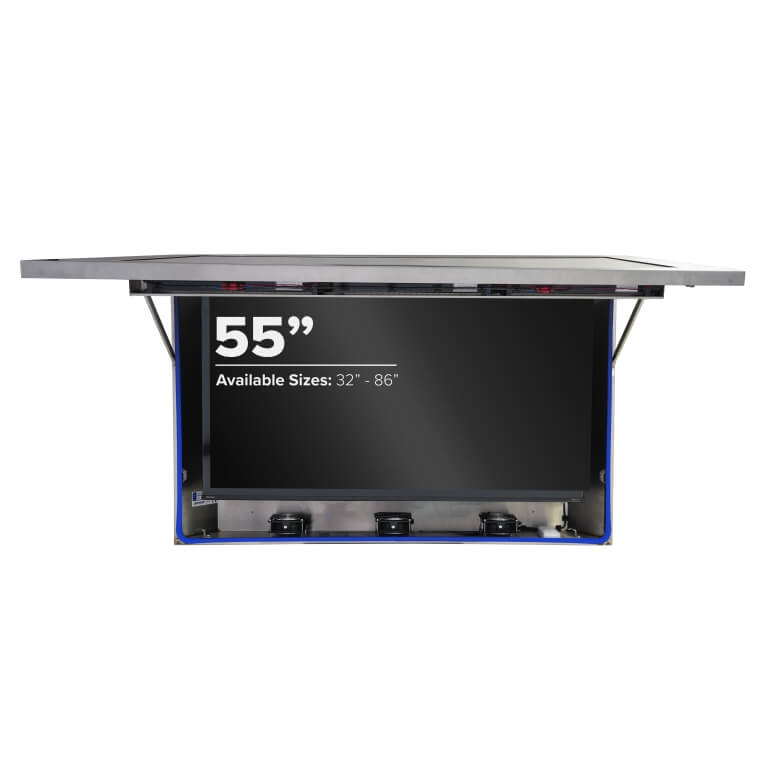

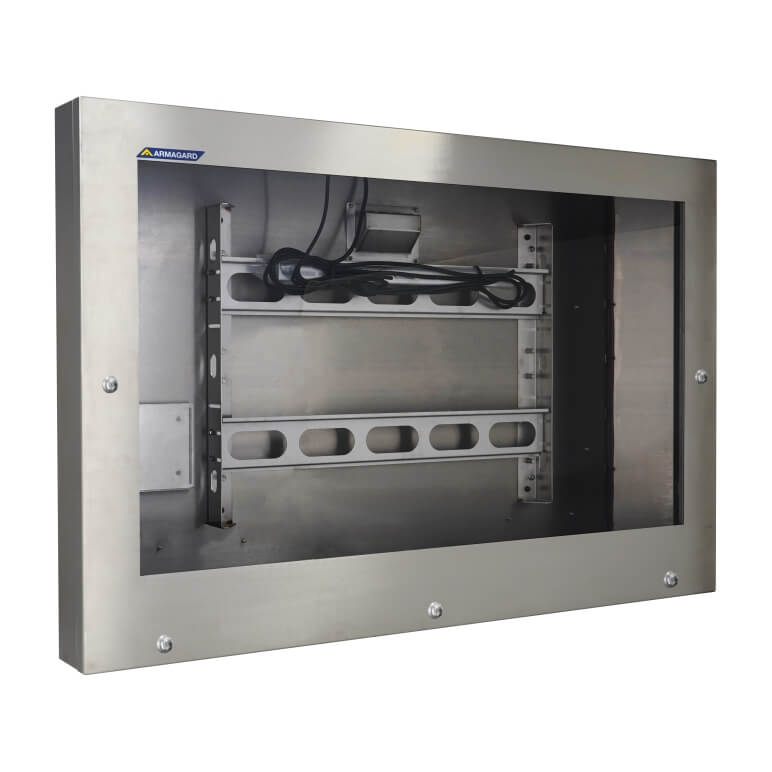

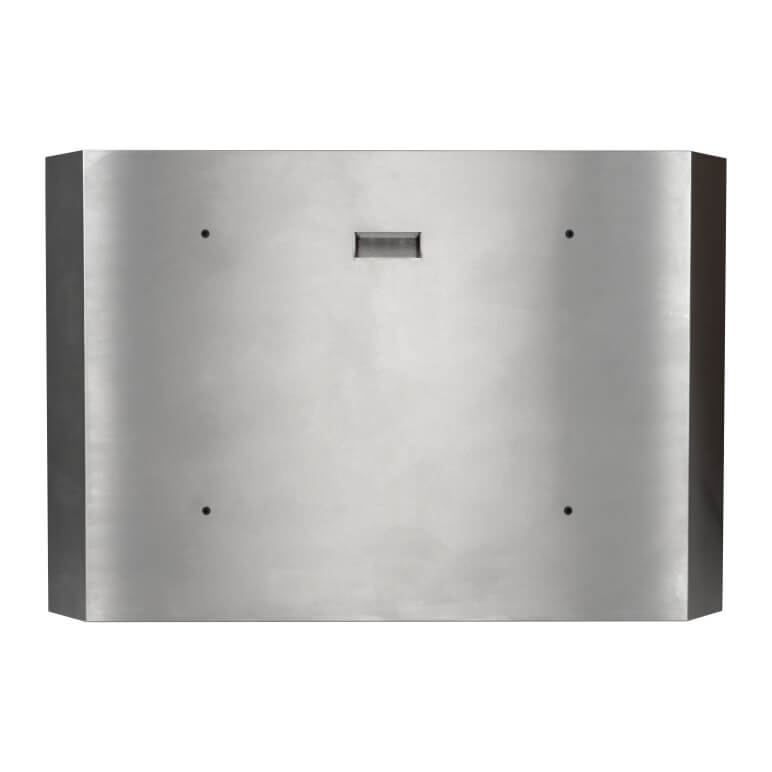

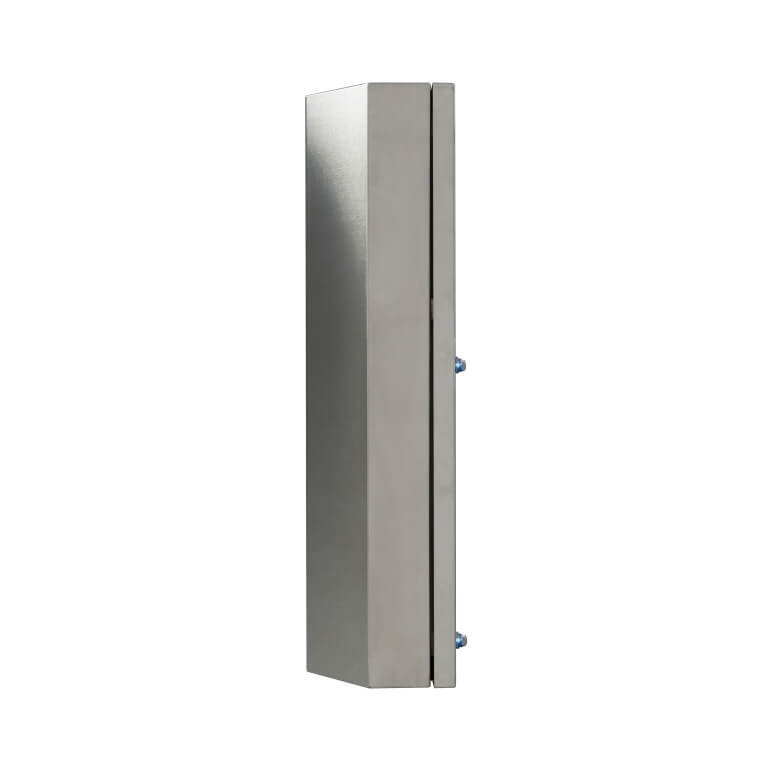

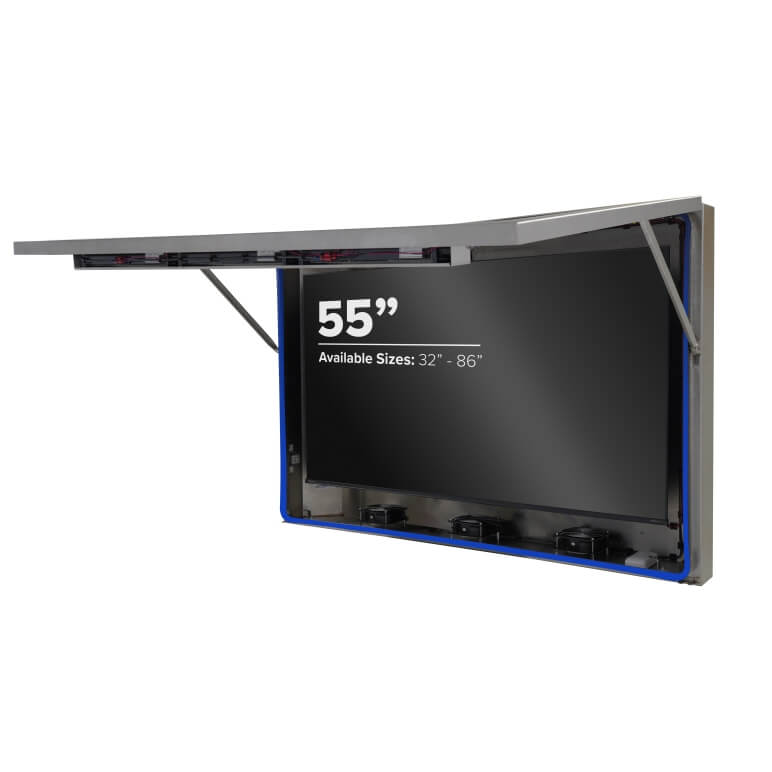

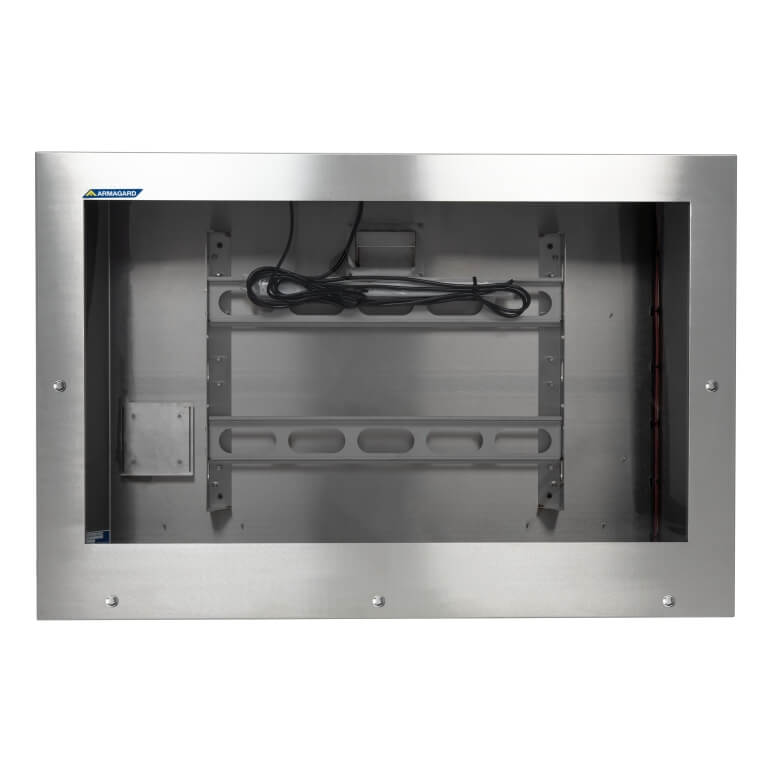

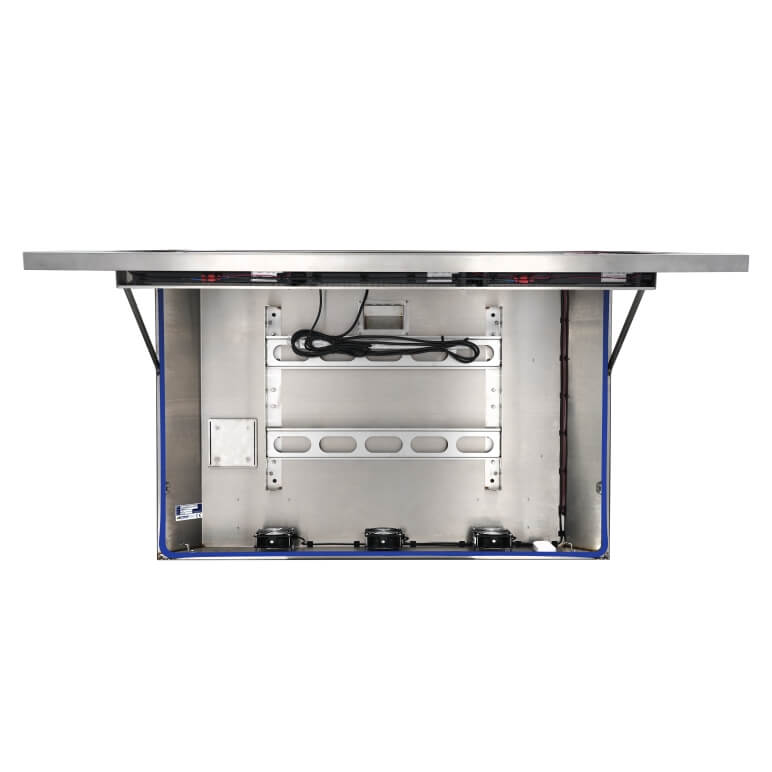

Click thumbnails for larger images:
- Food and Beverage Processing
- Pharmaceutical Applications
- Chemical Manufacturing
- Petrochemical Plants
- Waste Treatment
Ideal For:
- Screen Sizes:
- 32", 55", 75" (other sizes available)
- Size (HxWxD) inches:
- 38 × 56.1 × 7.3
- Material:
- 316 Stainless Steel
- IP Rating:
- IP69K
- Mounting:
- Ceiling or Wall
- Product Code:
- SDS18-55-W-L-CB1-IP69K
At A Glance: (Specification for 55")
Food-Grade, IP69K Production Display Board Enclosure
Every element of the IP69K enclosure is designed with washdown protection in mind. The food-grade (316) stainless-steel body is anti-bacterial and corrosion resistant, and washdown-rated seals, cable glands, and locks guarantee a completely watertight system. Your operators benefit from reliable metric display boards that operate 24/7 and under intensive daily cleaning.
As a cost-effective solution, the IP69K production display board enclosure maximizes the lifespan of the screen, reducing repair and replacement costs. Food manufacturers across the U.S. trust Armagard enclosures to protect screens in washdown areas, and the company’s 30 years of experience make it the leading name for equipment protection in sanitary industries.
Features And Benefits
| Features | Benefits |
|---|---|

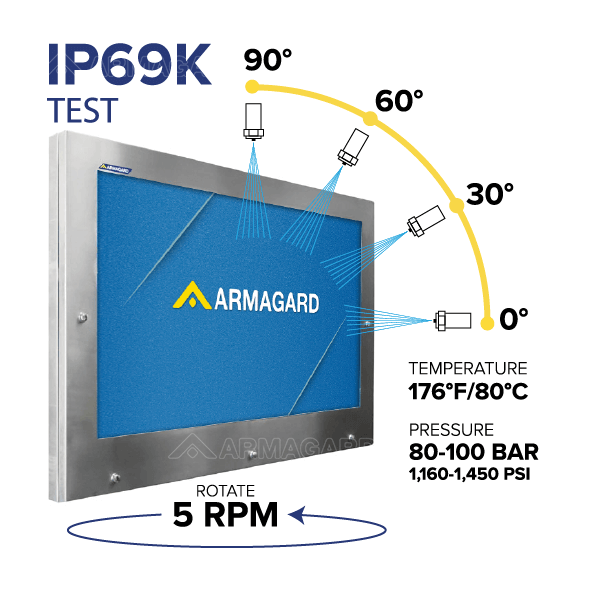

| IP69K Rating | Easily meet the most-stringent sanitation regulations. Safely carry out intensive steam cleaning at pressures of 80 to 100 bar/1,160 to 1,450 PSI, in phases of 14 to 16 l/min, and at temperatures up to 176°F. |
| Hygiene-Rated Seals and Stainless-Steel Cable Glands | The hygienic, watertight system allows time-efficient washdown and gives you peace of mind that the unit is thoroughly disinfected. |
| Food Grade (316) Stainless Steel | The stainless-steel body is inherently anti-bacterial and corrosion resistant, for maximum sanitation on food processing floors. |
| Internal Climate Controls | An innovative controller board manages internal fans and heaters. The screen operates at a safe, efficient temperature when conditions range from -22°F to 86°F. |
| 10-mm Polycarbonate Window | In the unlikely event of a breakage, the shatterproof window won’t contaminate your production line. |

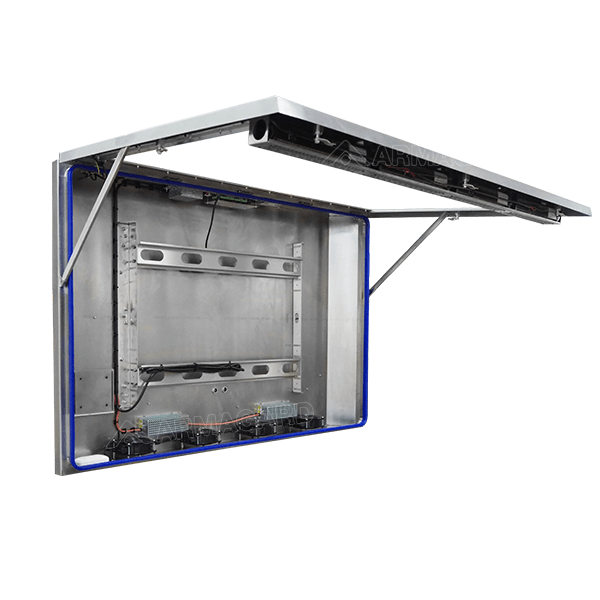

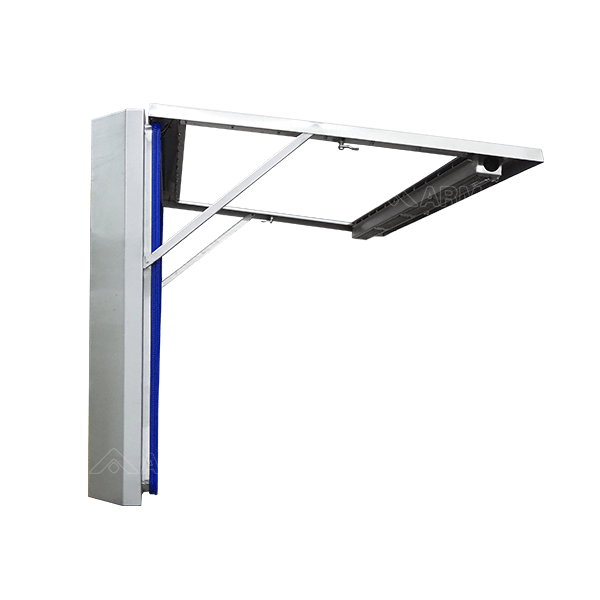

| VESA Compatibility and Easy Access | Install the 55" VESA-mountable screen of your choice. Easy access ensures maximum uptime by allowing you to remove or upgrade the screen without waiting for a specialist engineer. |

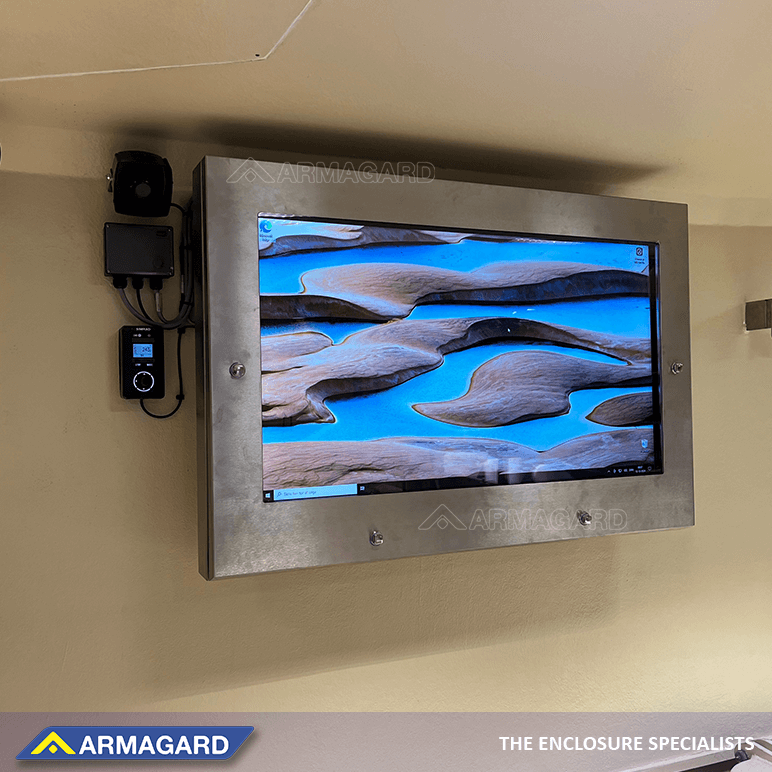

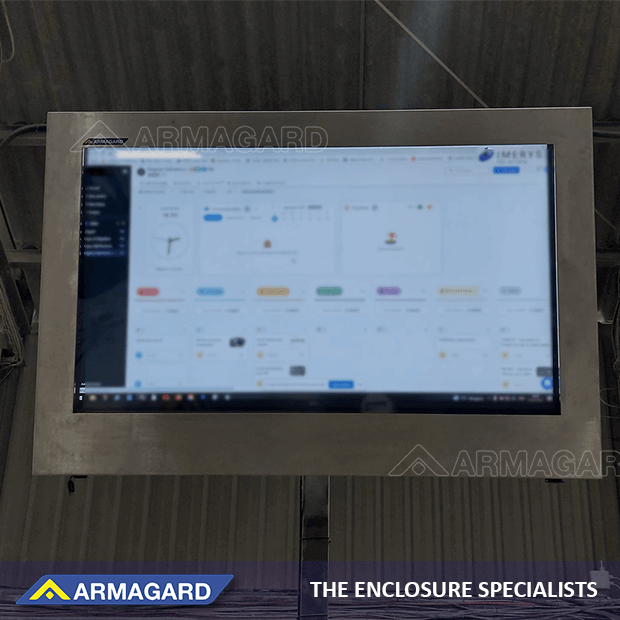

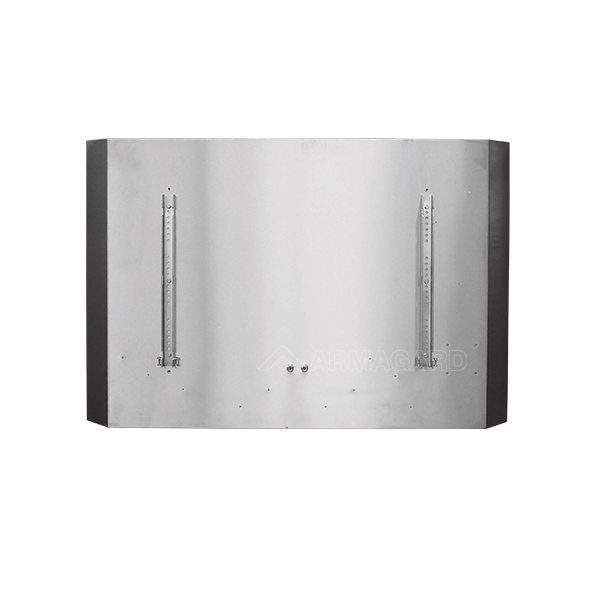

| Ceiling or Wall Mounting | Position the IP69K shop floor display board enclosure in the optimum location above your production line. Choose from ceiling or wall mounting and flat or tilted wall brackets. |
Specifications and Guarantees
All Armagard enclosures are built in accordance with International NEMA and European IP standards, guaranteeing protection from liquids and particulates.
- Five-Year Warranty on all Mechanical Parts
- One-Year Electrical Warranty, with a Five-Year Extended Warranty Available
- Informed and Helpful Support Staff
- High-Quality Engineering
- 30 Years of International Industry Experience
- Excellent, Ongoing Customer Service
- Lifetime Technical Support
